Agricultural exhaust fan
1. The outline border adopt advanced automatic process, more accuracy, material adopt zinc coat and zinc plate
2. The aluminum metal alloy of the high strength hub, adopt aviation aluminum magnesium metal alloy, light weight, high strength, good tensile
3.Strap adjust automatically, no need manual adjustment during lifetime
4. Shutter adopt special push-pull, open- close device, ensure shutter totally open and close, windproof, rainproof and dustproof
5. Newly punch forming fan blade, reasonable angel and reach the max. air flow, mini. Noise
6. Double bracing (E style) belt transporter, Europe industry motor standard
7. Safety net easily tear down
8.strictly quality test process: noise test, vibration test, concentric performance test, fan blade turning speed test, input air test and vehicle efficiency test
9. Special motor hole wind shield, avoid wind losing to reach the best wind suck effect
For the fan size, can customize from client.
parameters table
Fan specifications | Blade Diameter mm | Fan speed r / m | Input power kw | Current A | Air Volume m3 / h | Dimensions mm | Weight kg |
JFD-900E | 900 | 560 | 0.55 | 1.5 | 28000 | 1000*1000*450 | 46 |
JFD-1000E | 1000 | 560 | 0.75 | 2 | 36000 | 1100*1100*450 | 61 |
JFD-1100E | 1100 | 505 | 0.75 | 2 | 40000 | 1220*1220*450 | 68 |
JFD-1250E | 1250 | 476 | 1.1 | 2.8 | 46000 | 1380*1380*450 | 81 |

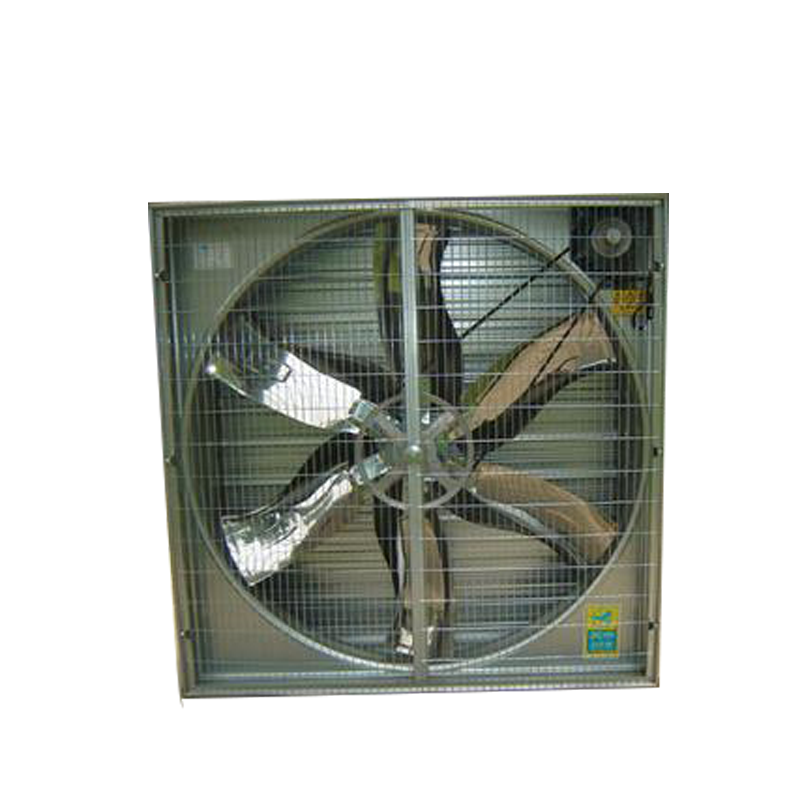

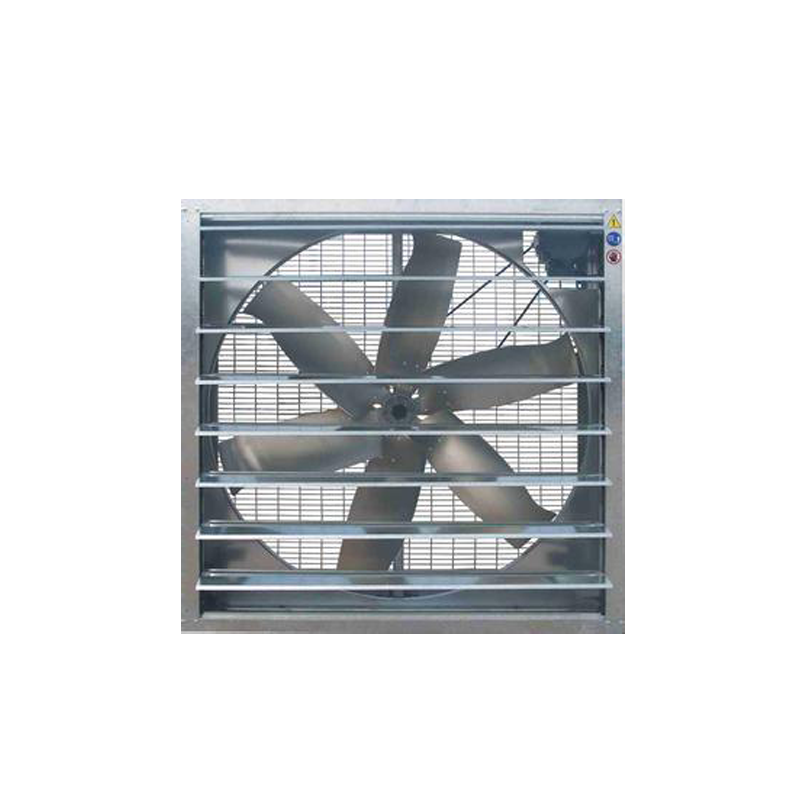

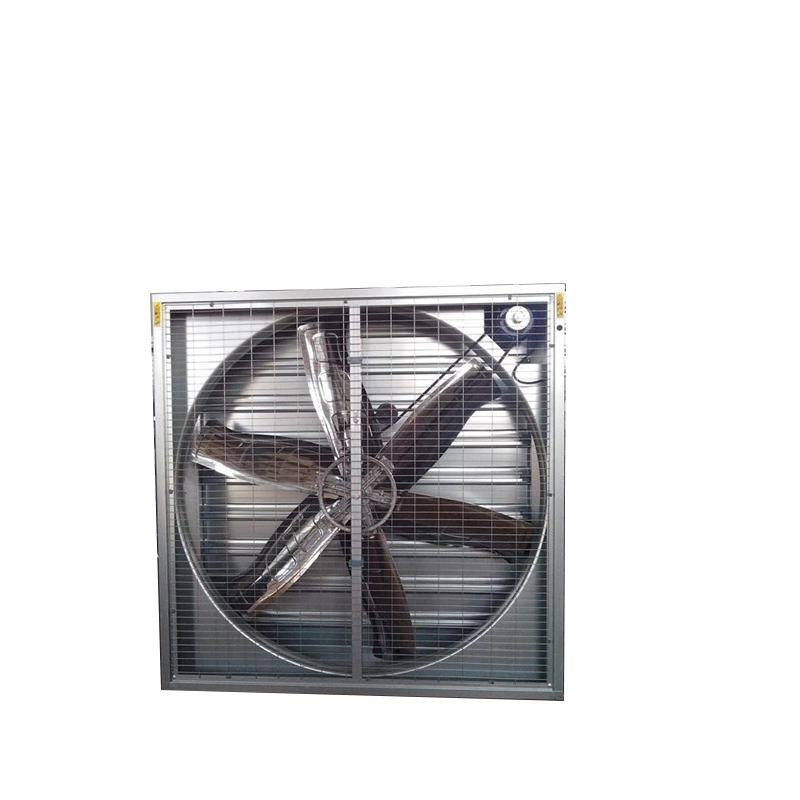

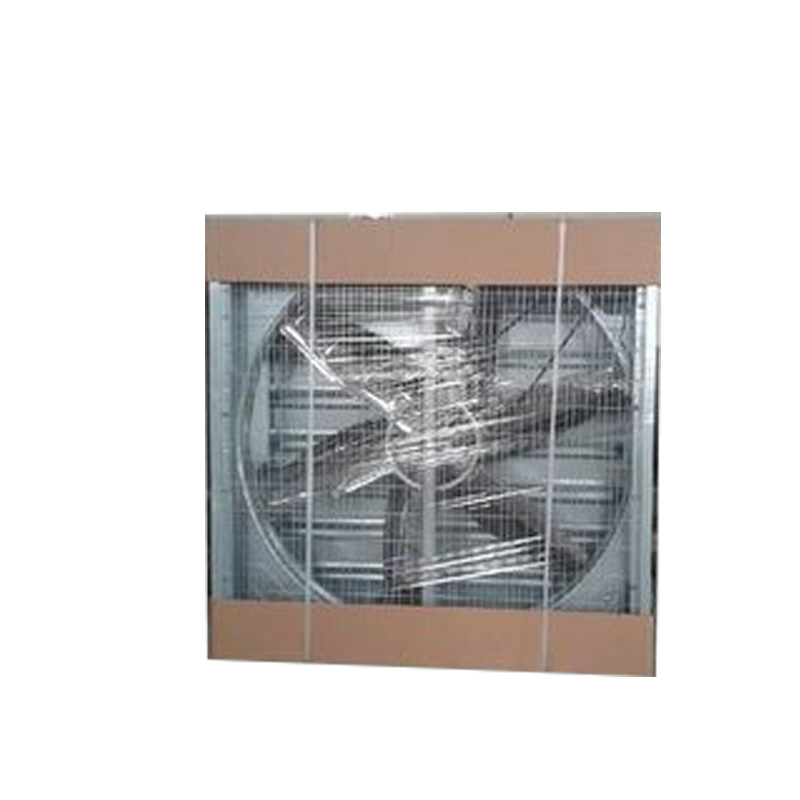

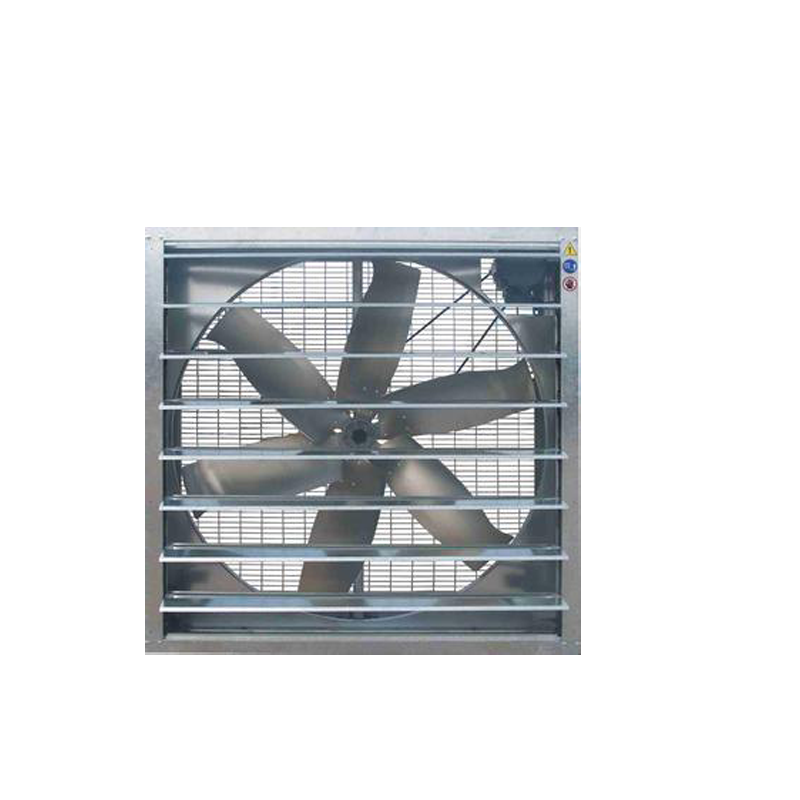

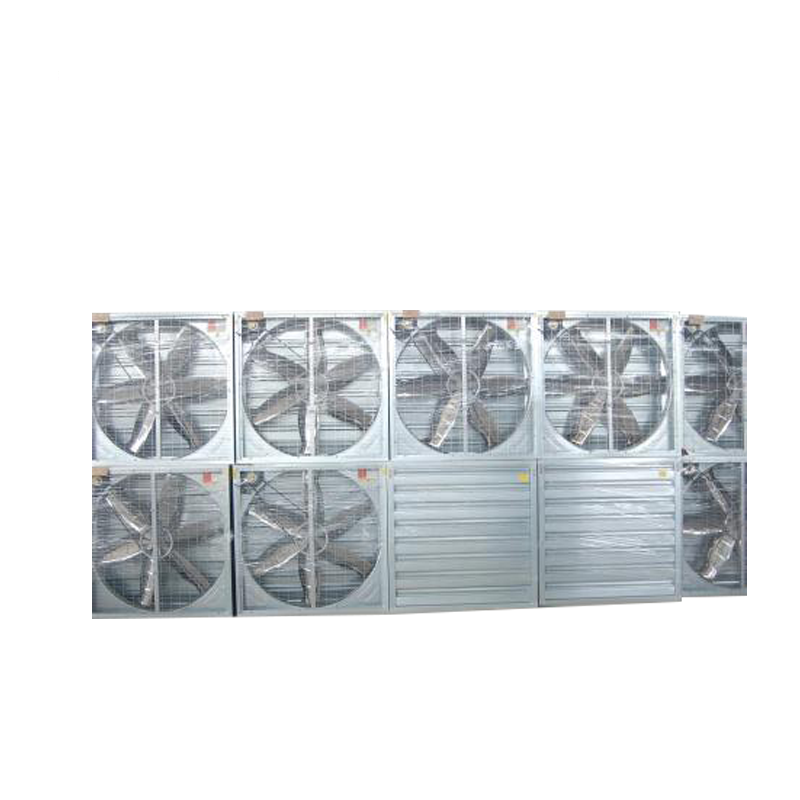

Product Image:
